MOD - Speed-Rail® | 90 degree

Hudson Spider™ | Made in USA

Mount Pipe Perpendicular to Truss

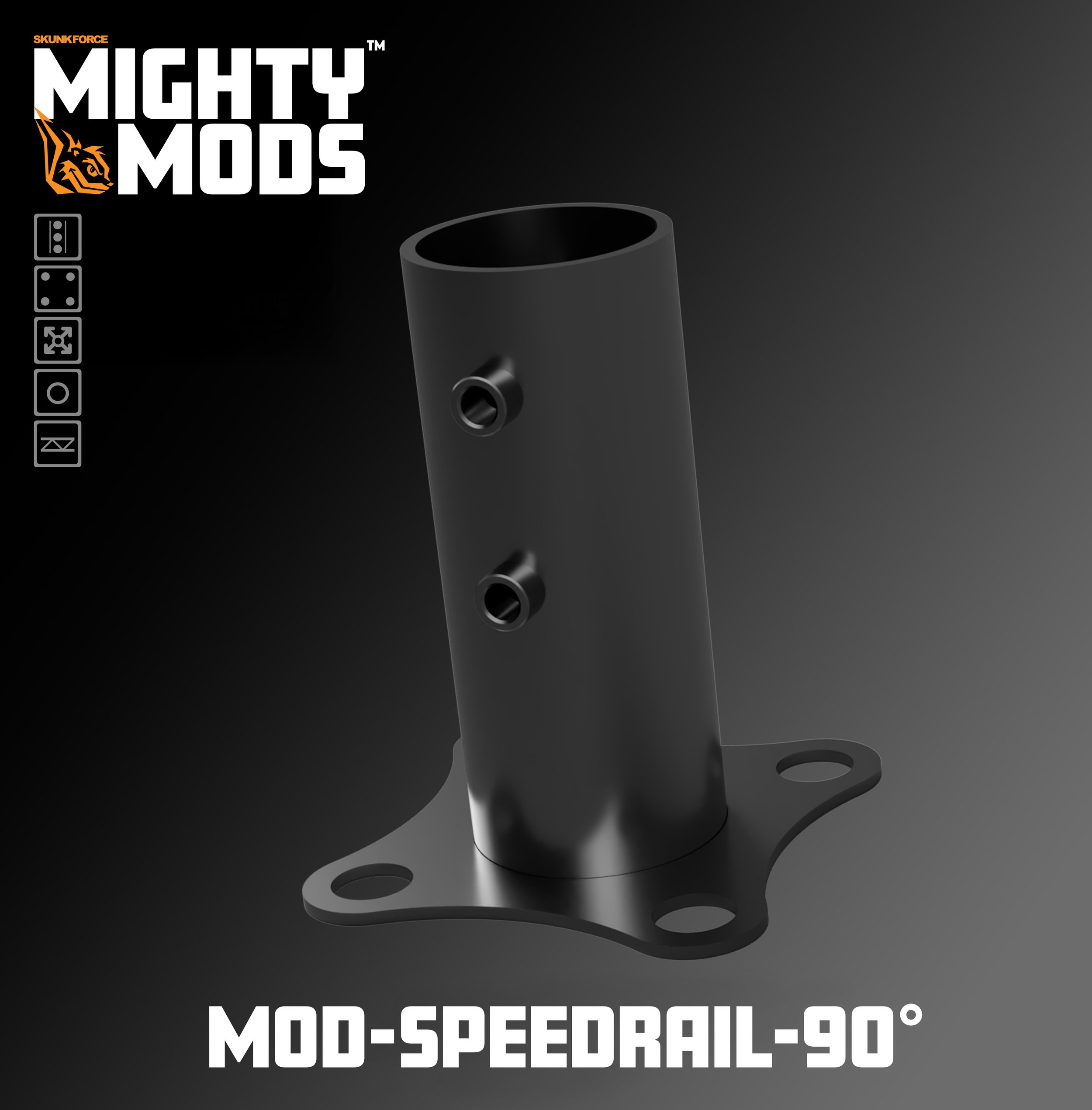

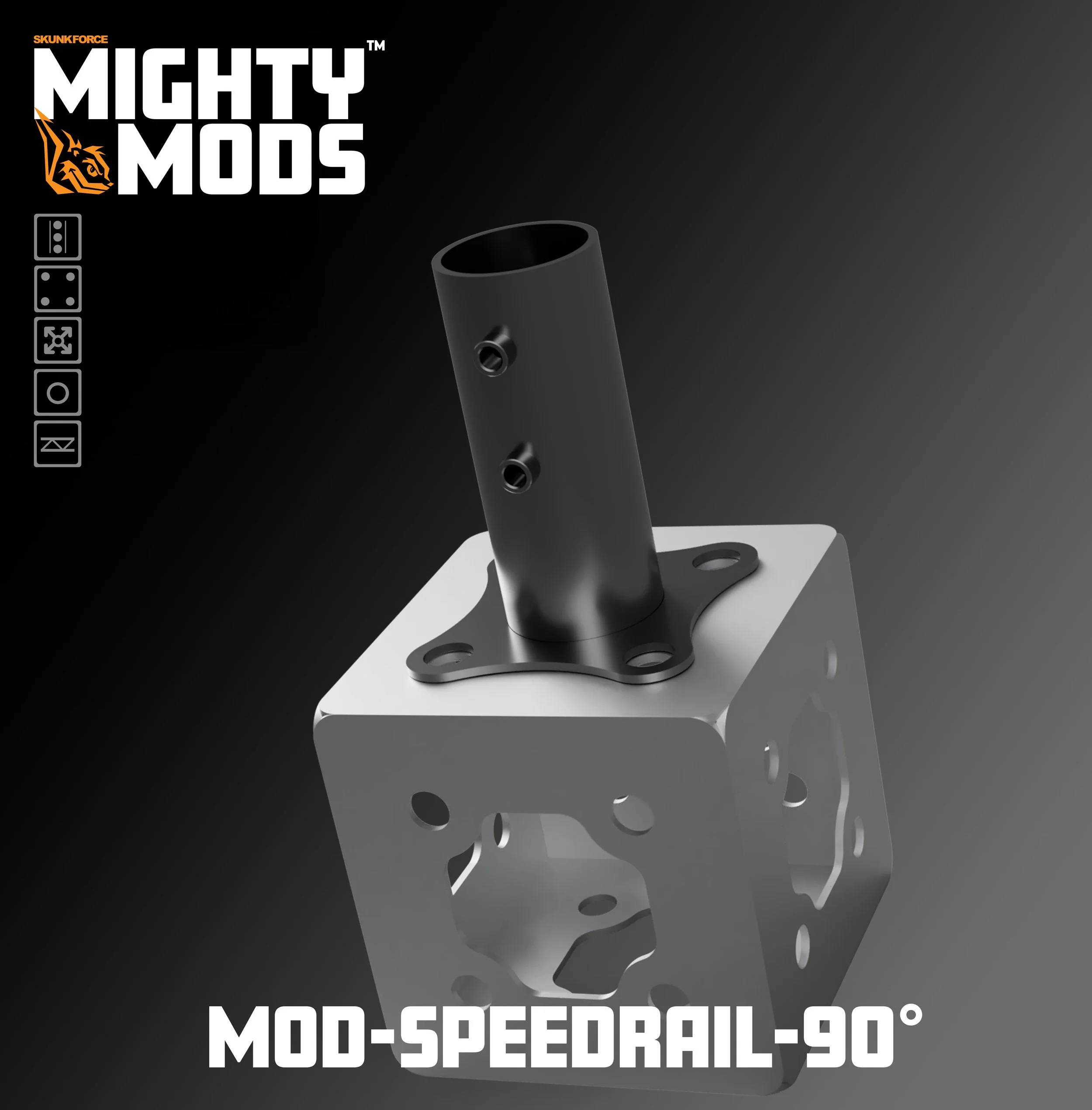

When your rigging needs Speed-Rail® perpendicular to truss, this right-angle connector delivers. It creates a solid 90° connection to ModTruss®, Modulus X™, MeccaTruss™, and other truss systems with the 3″GRID hole pattern.

The pass-through design lets pipe continue through the truss face when needed, eliminating improvised solutions and saving valuable setup time in complex rigging scenarios.

Why Direct Mounting Matters

For overhead structures and wall-mounted setups, proper perpendicular mounting is critical for load distribution. This connector eliminates stacked adapters and improvised solutions that create weak points in your rig, enhancing safety and simplifying inspections.

Technical Specifications

For 1-1/4" Speed-Rail compatibility:

• Pipe OD: 1.660" (42.2mm)

• Receiver ID: 1.700" (43.2mm)

For 1-1/2" Speed-Rail compatibility:

• Pipe OD: 1.900" (48.3mm) - also compatible with European Scaff Tube (48.3mm OD)

• Receiver ID: 2.000" (50.8mm)

‍ ‍Key Features

• True 90° Mounting: Precise perpendicular alignment between Speed-Rail® and truss for maximum stability.

• Pass-Through Design: Continue pipe straight through truss face, creating cleaner rigs with fewer components.

• Versatile Compatibility: Works with all 3″GRID pattern truss systems and standard Schedule 40 pipe.

• Two Pipe Sizes: Available for 1¼″ (1.66″ OD) and 1½″ (1.90″ OD) Speed-Rail®, ensuring compatibility with your existing inventory.

‍ ‍Technical Specifications

• Material: High-strength structural steel (ASTM A36)

• Finish: Black zinc coated for extreme durability and corrosion resistance

• Welds: 100% certified structural welds (AWS D1.1)

• Working Load Limit: 500 kg (1,102 lbs) when properly installed with 5:1 safety factor

• Mounting: 3″ on-center bolt pattern with four 5/8″-11 or 16mm bolts through 11/16″ holes

• Recommended Hardware: Grade 8/Class 10.9 bolts with lock washers and nylock nuts

‍ ‍Common Applications

• Film & Stage: Camera and lighting positions on truss structures - for stable, vibration-free mounting

• Live Events: Speaker mounts, projection platforms, and tech stations - reducing setup time and increasing safety

• Industrial: Material handling attachments and overhead lifting points - providing OSHA-compliant rigging solutions

• Exhibitions: Display mounting and portable rigging for trade shows - creating clean, professional installations

• Aerospace: Ground support equipment (GSE) for maintenance platforms - ensuring precision alignment

Compatibility

Compatible with all modular truss systems that feature the 3″GRID hole pattern, including ModTruss®, Modulus X™, and MeccaTruss™. Works with standard Speed-Rail® fittings and industry-standard pipe diameters. Easily installs with common tools in minutes.

What's Included

One Speed-Rail® 90° connector in your selected pipe size. Hardware for truss mounting sold separately. Installation guide and bolt torque specifications included.‍

Built for precision when the angle matters.

‍

Order Today

Select your pipe size below and add to cart. For bulk orders or custom solutions, contact our sales team.

‍

This product is compatible with ModTruss®, Modulus X™, and MeccaTruss™ modular truss systems. Perfect for film, events, and industrial applications as part of a complete set of modtruss accessories and modulus x accessories. Works with all 3"GRID compatible truss system accessories.
