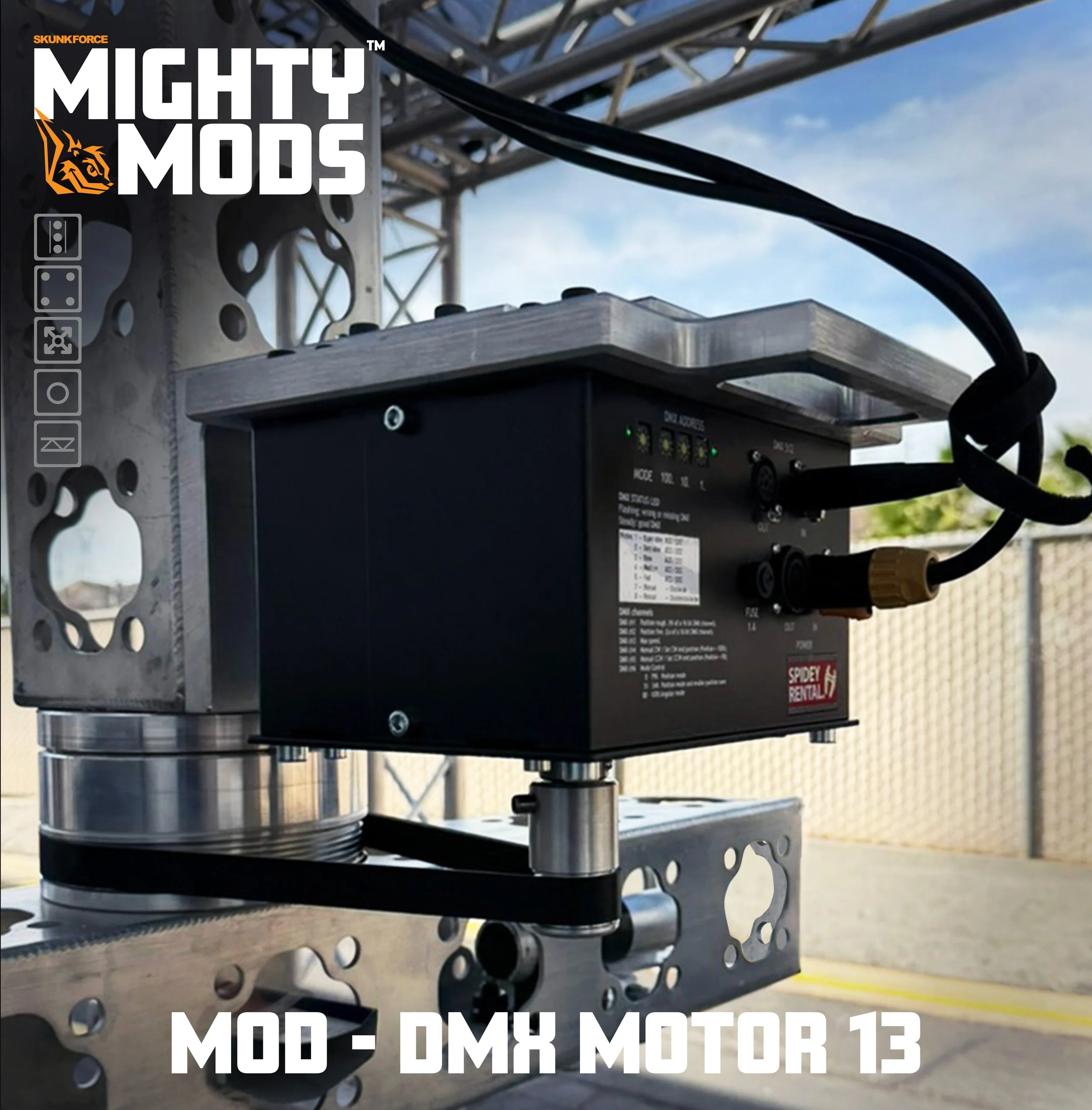

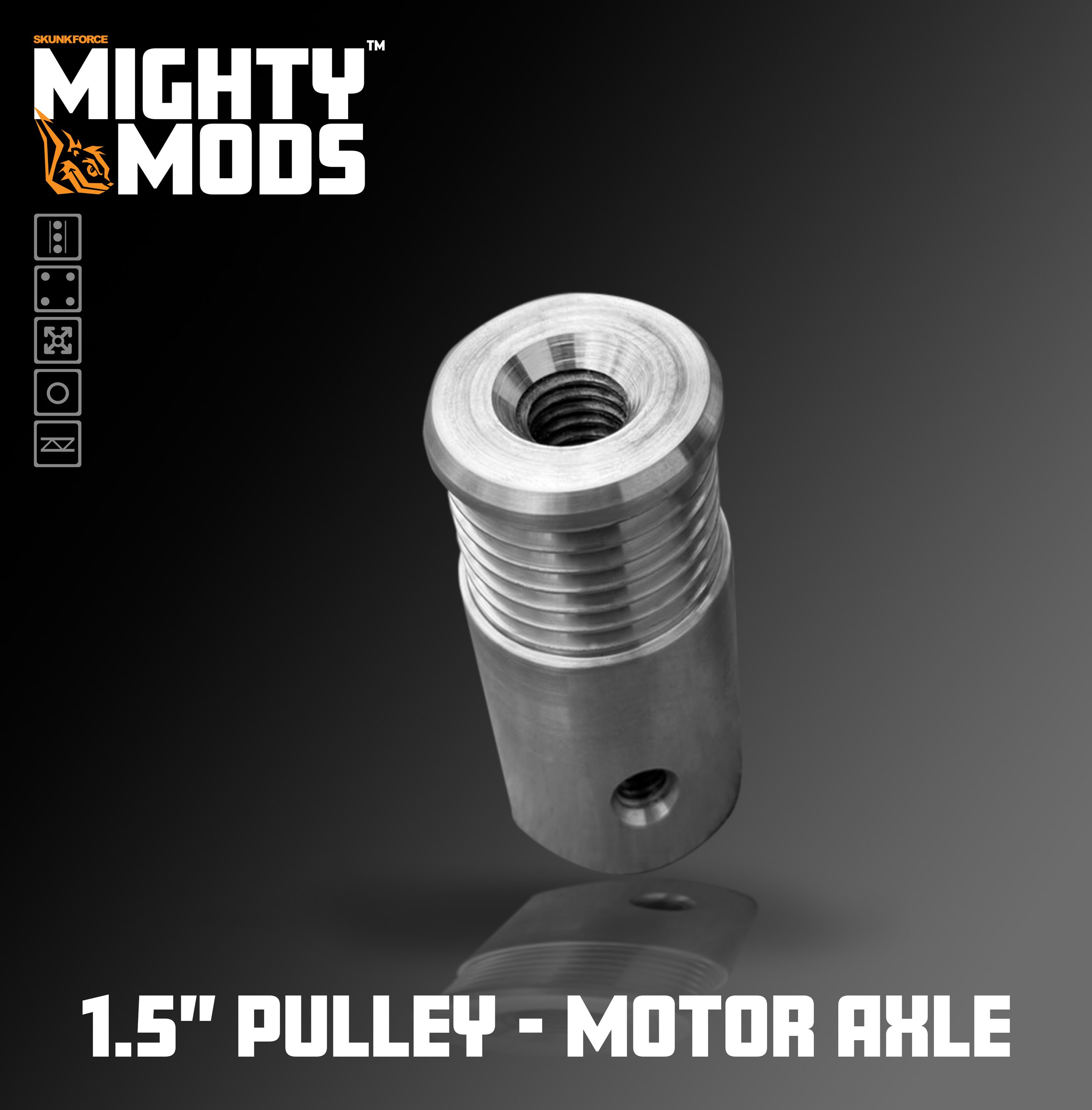

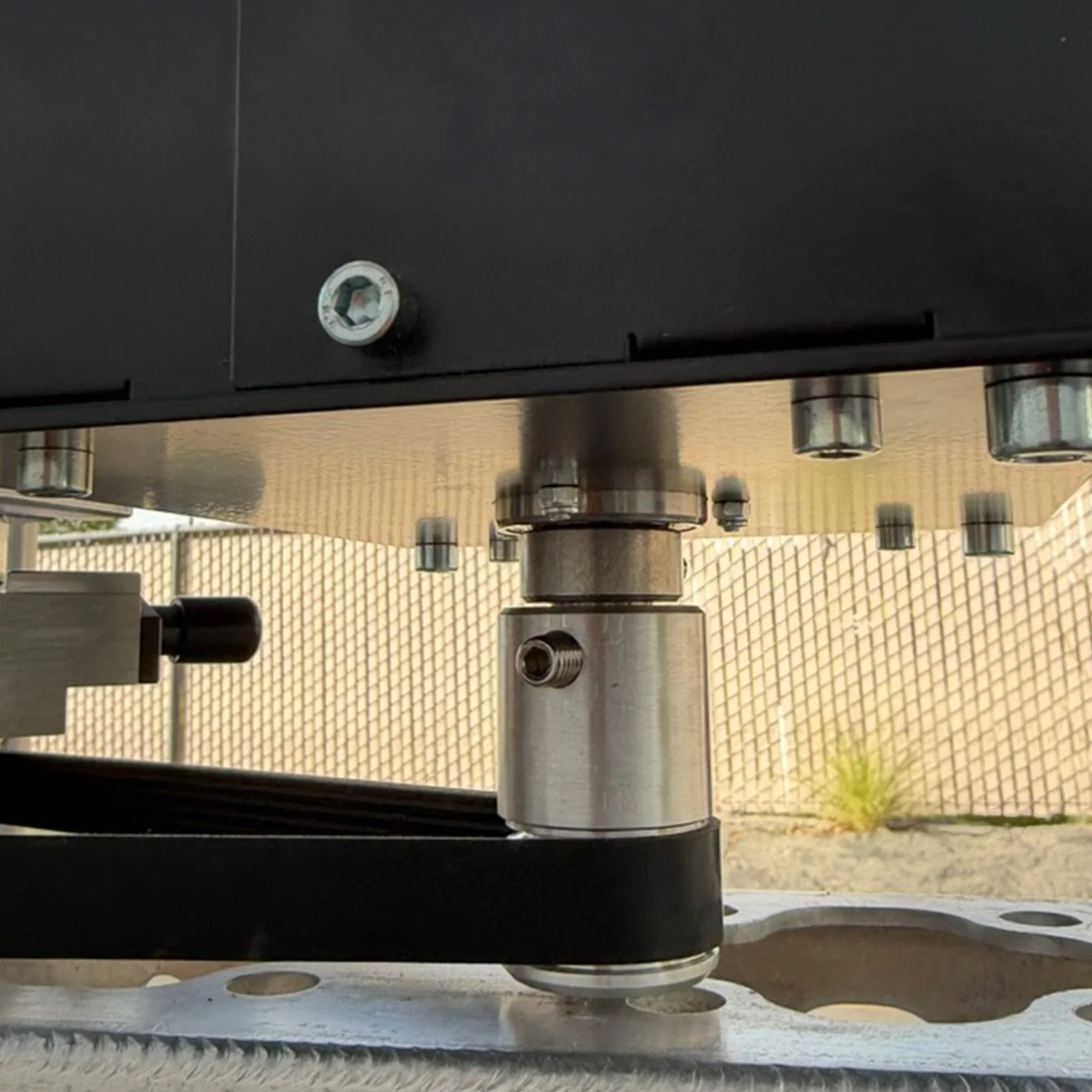

This is a DMX controllable Motor . This motor drives a pulley that bolts directly to our MOD - ROTATOR via a motor shaft pulley and belt.
You can use this for a myriad of builds, from driving a rotating camera rig to a handsfree poor man’s process, time and time again, you will be able to save the day with this controllable and programable motor. Compatible with all rigging truss and grip standard attachments including those for camera and dolly , just contact us for the connection you require
Specifications:
POWER SUPPLY: 115 V / 230 V AC 50 Hz / 60 Hz
POWER CONSUMPTION:Max 150 Watt
POWER INLET/OUTLET: Neutrik powerCON TRUE1 NAC3PX (F/M)
DMX CONTROL SIGNAL: DMX 512 1990 + DMX512A / 7 channels used
DMX CONNECTION: 5 pole XLR, In & link
ROTATING LIMIT: No limit / Continuous rotation
ROTATING SPEED:Variable, 0.85–13.6 rpm
WORKING LOAD LIMIT (WLL):
• Shaft – down: 50 kg (110 lb)
• Shaft – up: NOT RECOMMENDED
• Shaft – sideways: NOT RECOMMENDED
NOISE EMISSION:−50 dB (max measured noise at 1 m / 3.3 ft)
AMBIENT TEMPERATURE:0–40 °C (32–104 °F)
OWN WEIGHT: 7.6 kg (16.8 lb)
MOUNTING CLAMPS:2 × Slim eye ProBurgers 1.25-1.5” speedrail
MOTOR:24 V DC, 28.9 Watt, IP30

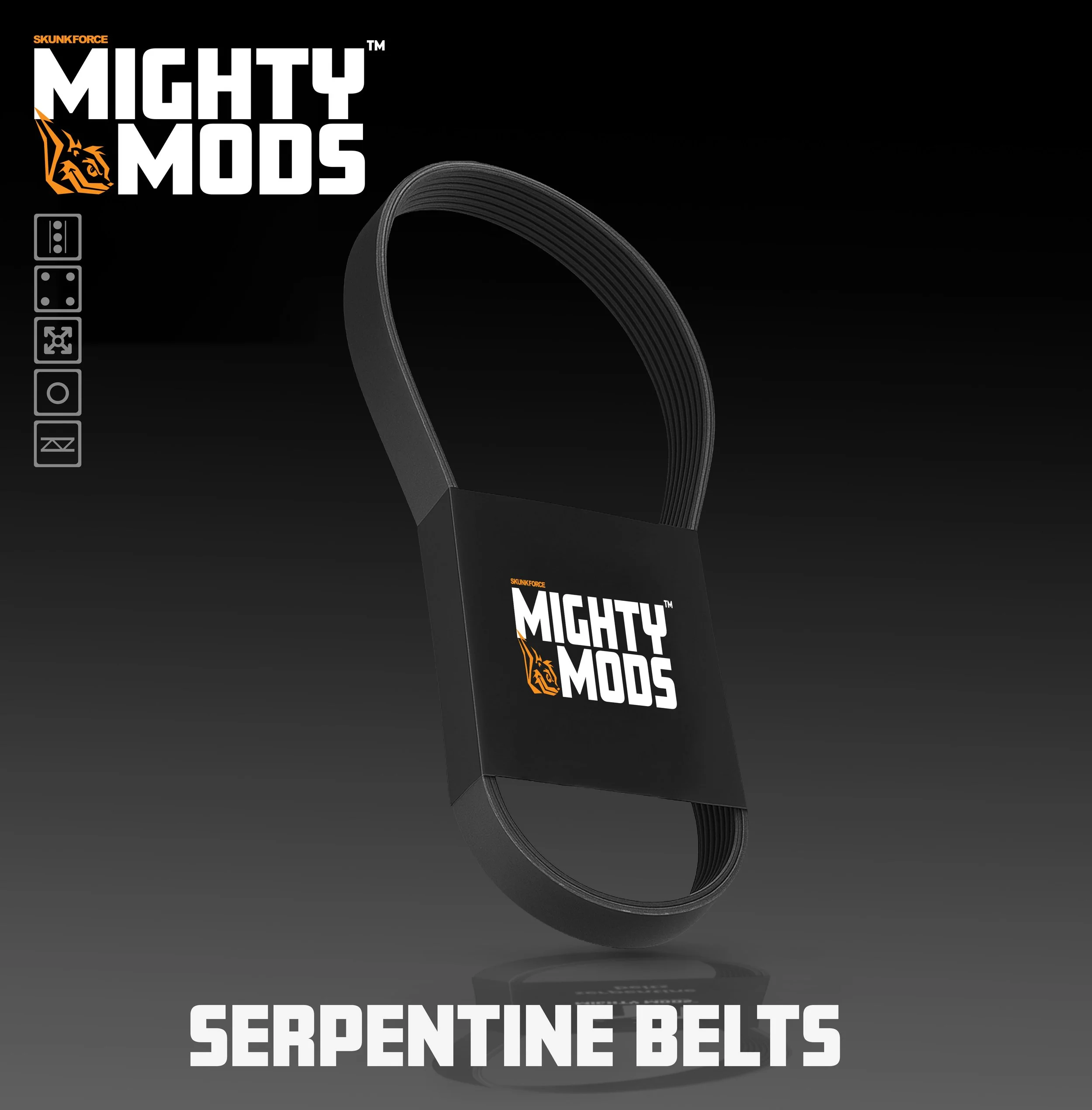

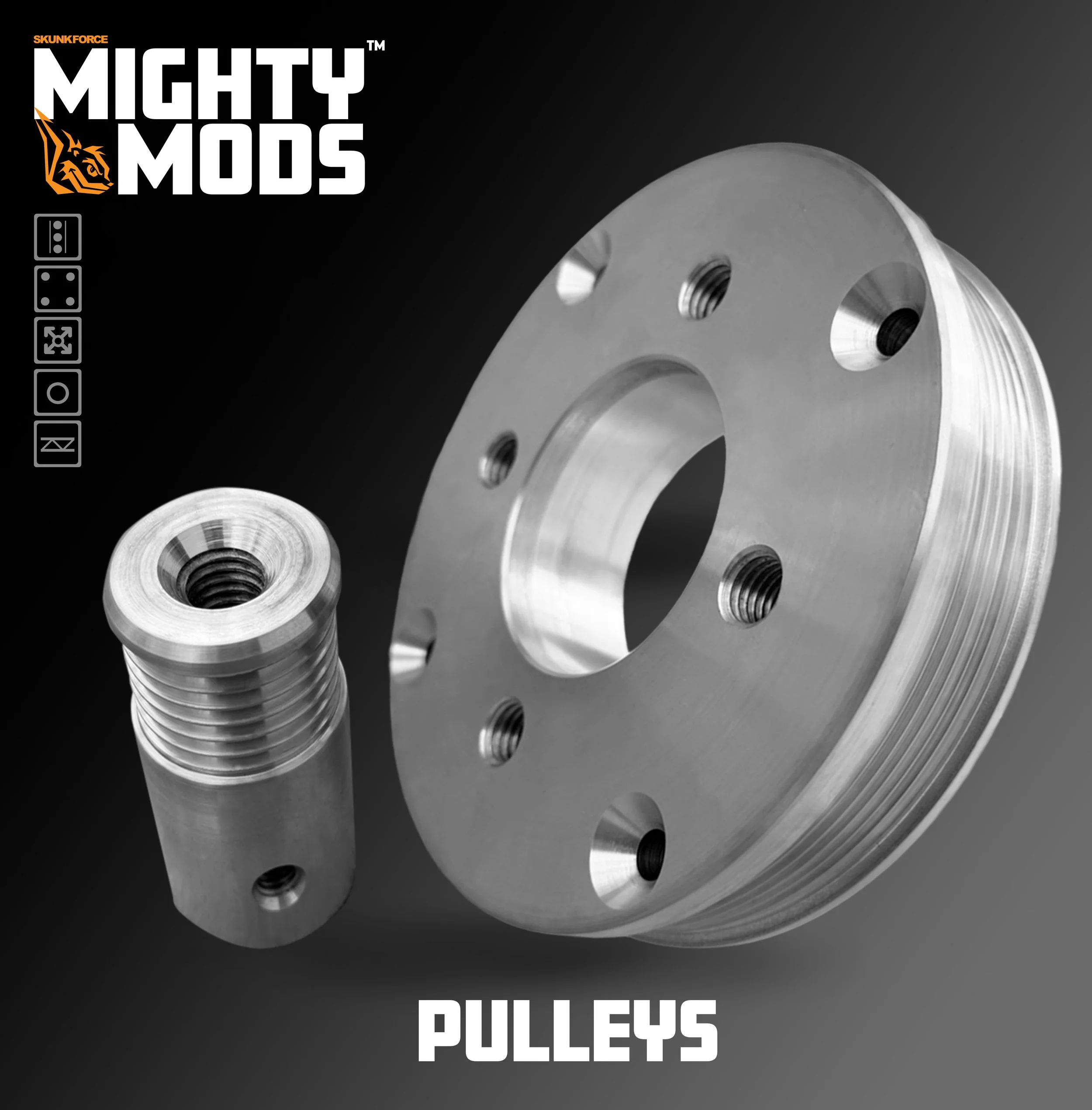

Pulley and belt options will be available shortly. Right now we have only a gear reduction setup available, reducing max RPM to approx 4rpm. We expect to offer a 1:1 ratio next, bringing max RPM up to 13.6.
Please note: MOD-ROTATOR sold separately
