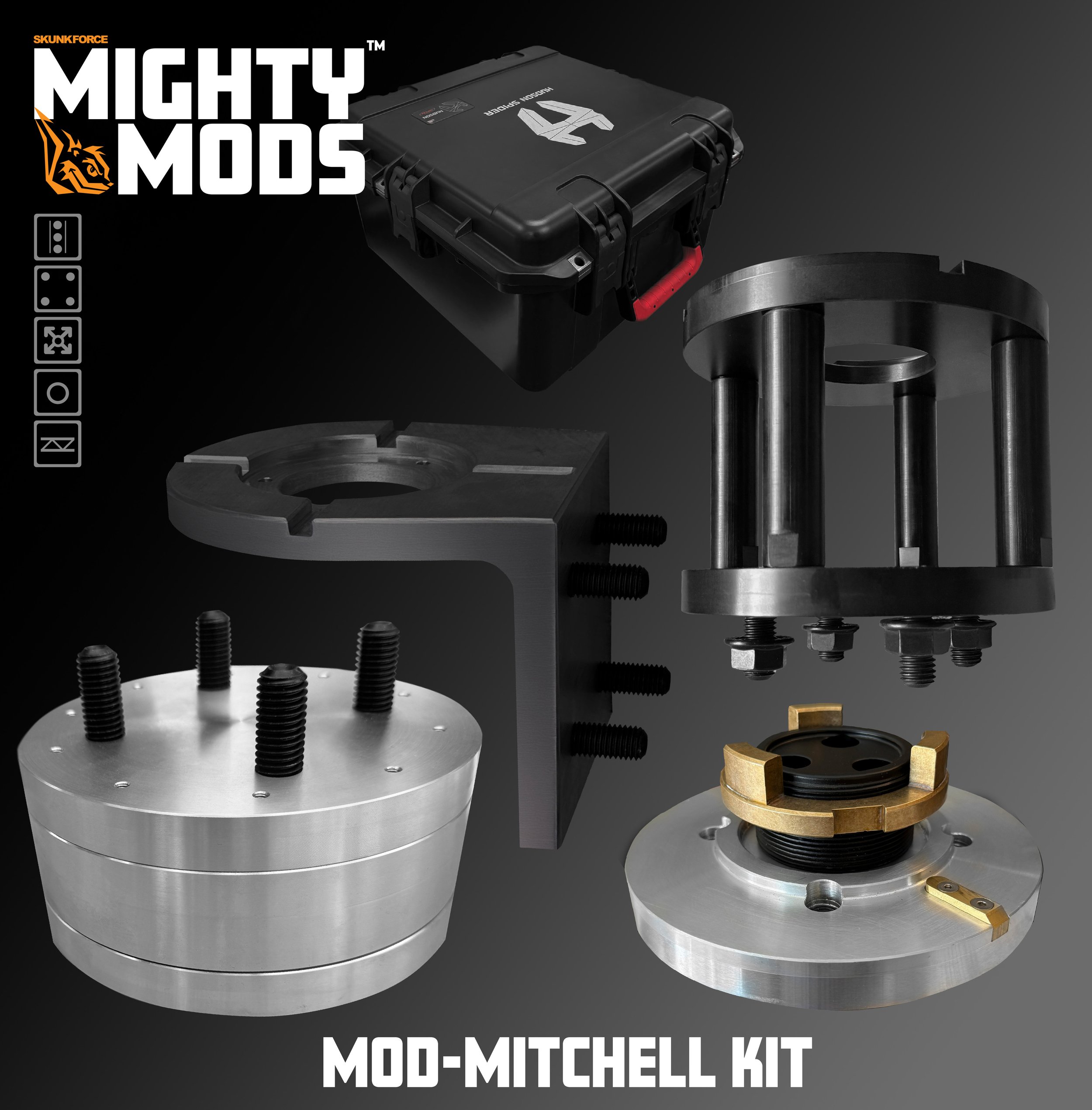

MightyMODS™ MOD-MITCHELL KIT

Here’s the go to kit for building effective rigs with ModTruss when camera dollies and camera equipment that utilize Mitchell mounts are required.

Included:

MOD-ROTATOR-BRAKE-MOD

MOD-MALE MITCHELL

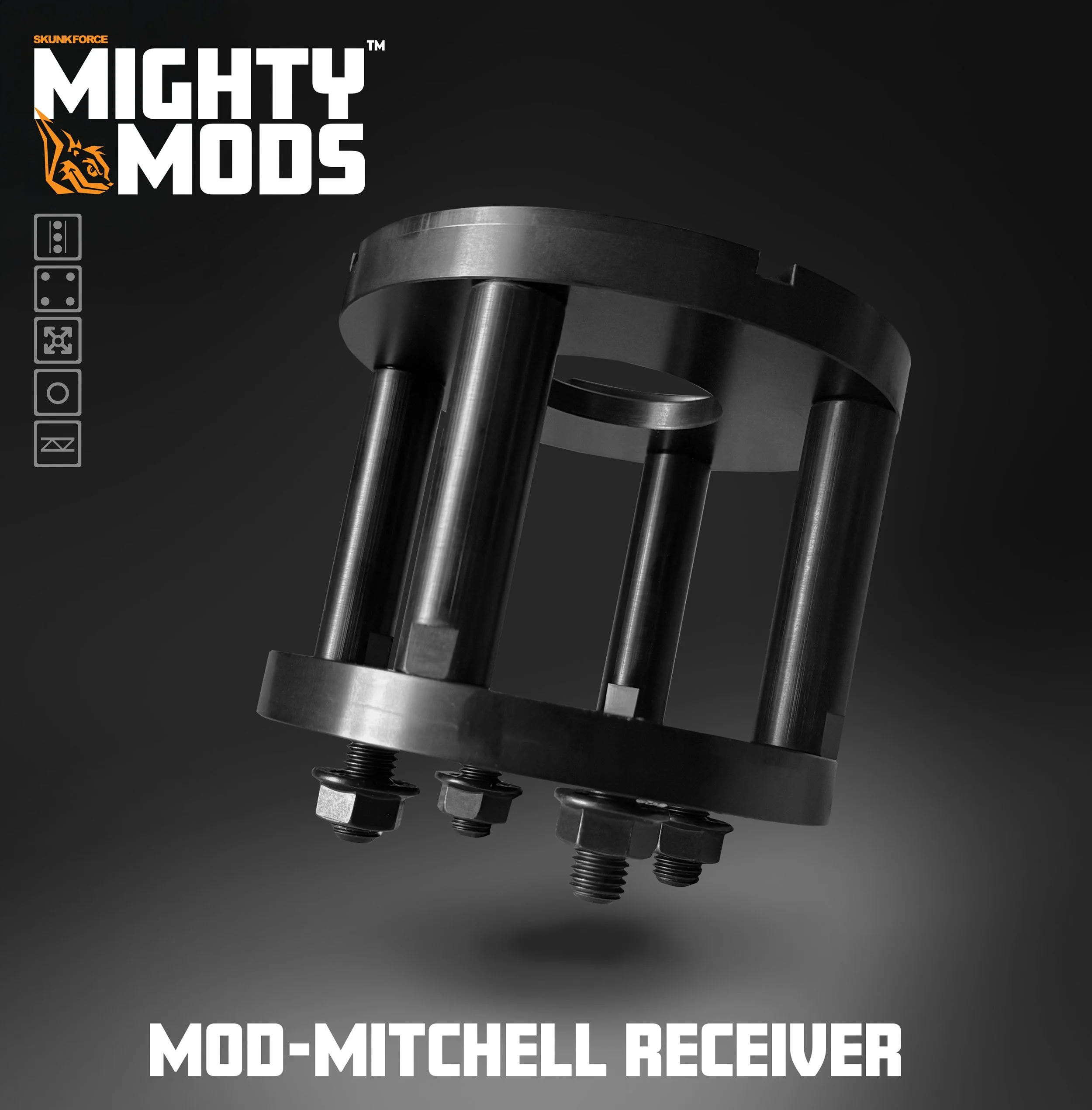

MOD-MITCHELL RECEIVER

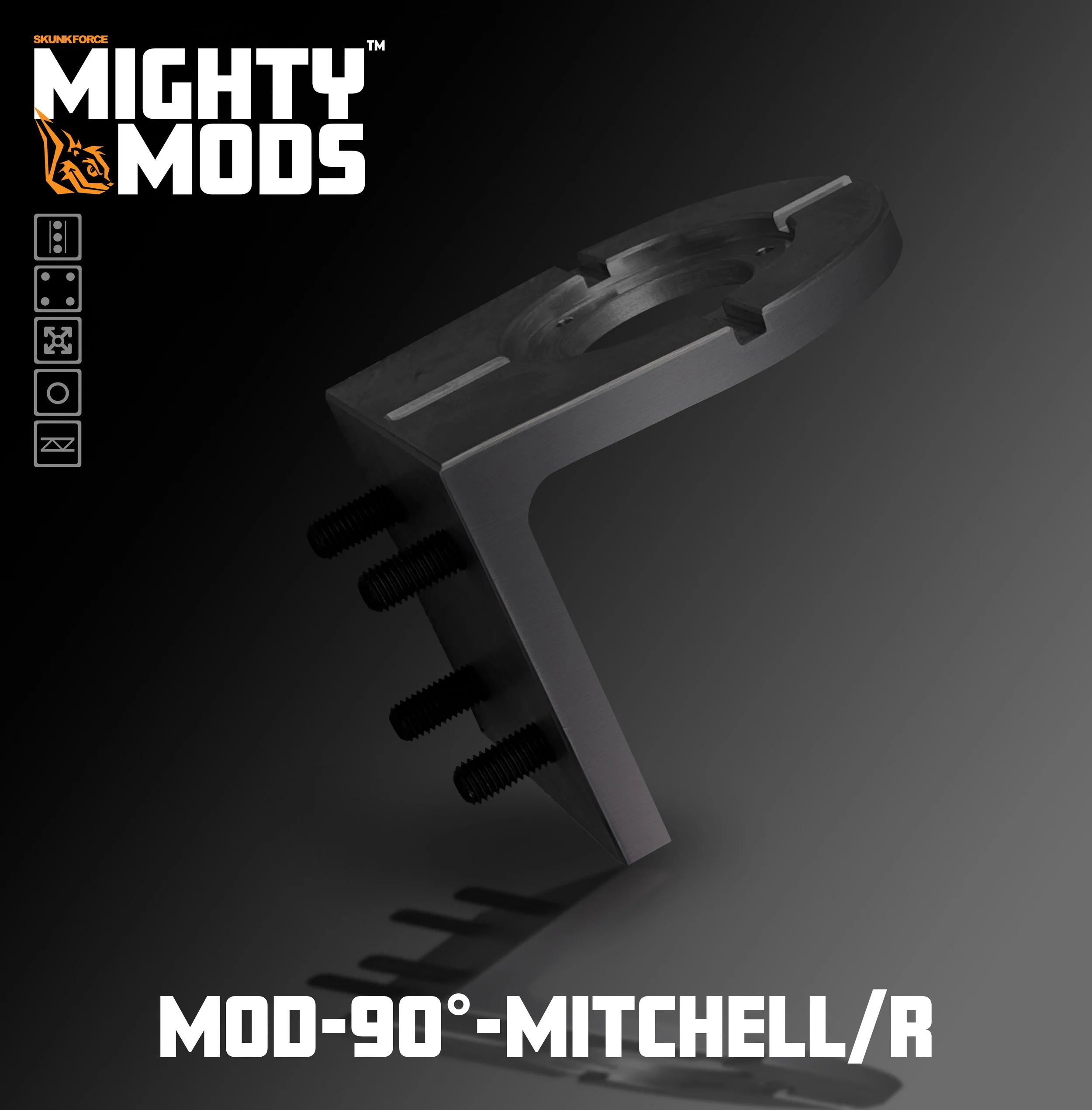

MOD-90º MITCHELL RECEIVER

A comprehensive Mitchell mounting system including our extremely high performance Crossed Roller rotator bearing with braking system, all together in one sturdy waterproof SKB roadcase with custom insert.

MightyMODS™ accessories attach using the universal utility 3”x3” 11/16” hole pattern found on ModTruss.

The working load limits (WLL) for our MOD-rotator-MOD assembly are as follows:

• Axial Load (Tension/Compression):

  • Static: 30 kN (~6,700 lbf)

  • Dynamic: 20 kN (~4,500 lbf)

  • Shock: 15 kN (~3,400 lbf)

• Radial Load (Shear):

  • Static: 15 kN (~3,400 lbf)

  • Dynamic: 10 kN (~2,250 lbf)

  • Shock: 5 kN (~1,100 lbf)

• Moment Load (Overturning):

  • Static: 1,000 N·m (~740 ft·lb)

  • Dynamic: 650 N·m (~480 ft·lb)

  • Shock: 330 N·m (~240 ft·lb)

These limits are based on engineering calculations and standard safety factors. Please ensure proper installation and load distribution.

Note:The Rotator is compatible with the Mitchell to MOD adapter, to convert it to a male mitchell to MOD rotator.
