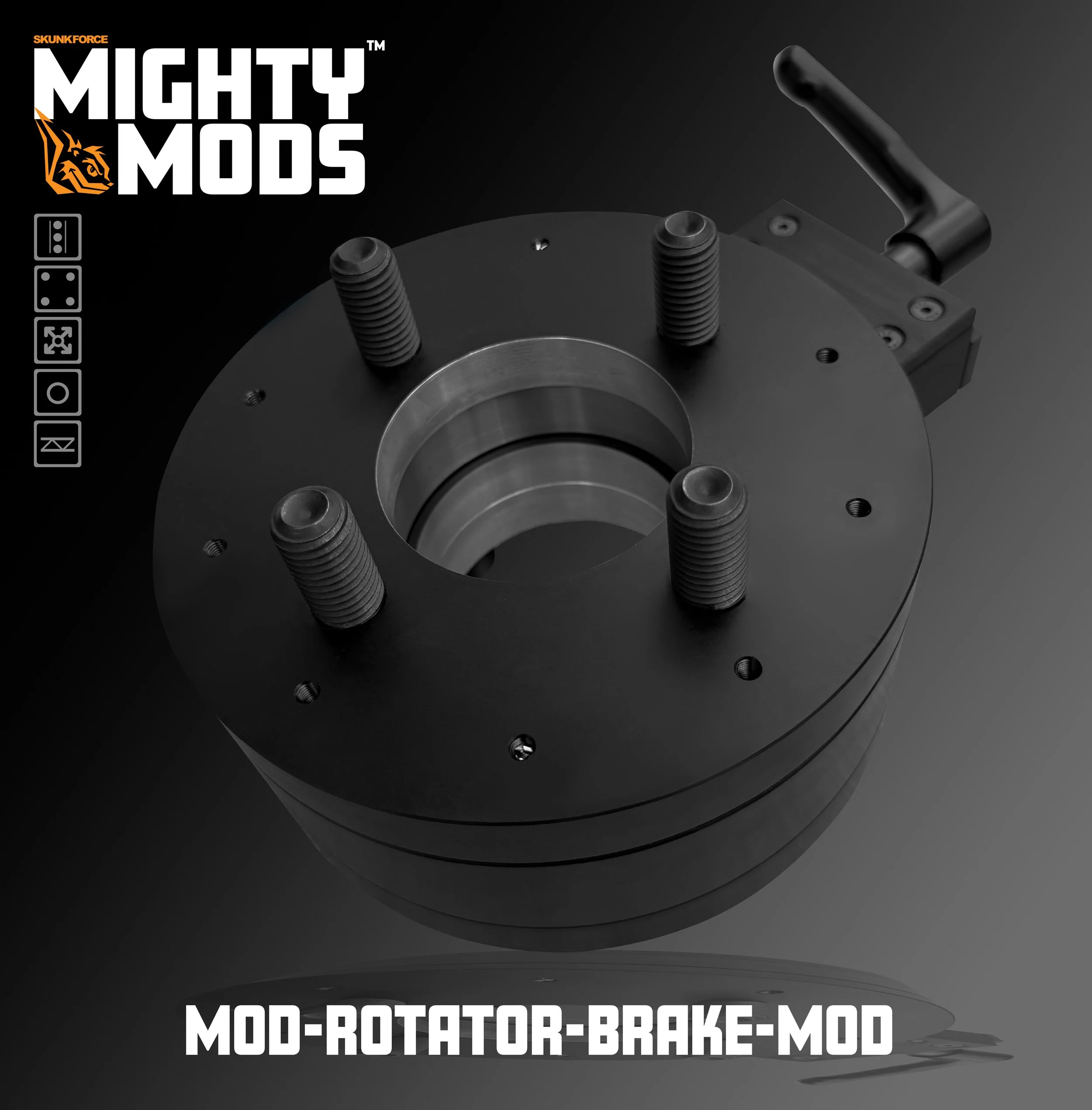

MightyMODS™ MOD-ROTATOR-BRAKE-MOD

This accessory features an extremely high performance Crossed Roller rotator bearing with braking system.

MightyMODS™ accessories attach using the universal utility 3”x3” 11/16” hole pattern found on ModTruss. This product has embedded studs threaded with the ModTruss standard 5/8” 11 thread.

Designed to connect MOD to MOD with a heavy duty rotator bearing in between. Super smooth and very popular.

The working load limits (WLL) for our MOD-rotator-MOD assembly are as follows:

• Axial Load (Tension/Compression):

  • Static: 30 kN (~6,700 lbf)

  • Dynamic: 20 kN (~4,500 lbf)

  • Shock: 15 kN (~3,400 lbf)

• Radial Load (Shear):

  • Static: 15 kN (~3,400 lbf)

  • Dynamic: 10 kN (~2,250 lbf)

  • Shock: 5 kN (~1,100 lbf)

• Moment Load (Overturning):

  • Static: 1,000 N·m (~740 ft·lb)

  • Dynamic: 650 N·m (~480 ft·lb)

  • Shock: 330 N·m (~240 ft·lb)

These limits are based on engineering calculations and standard safety factors. Please ensure proper installation and load distribution.

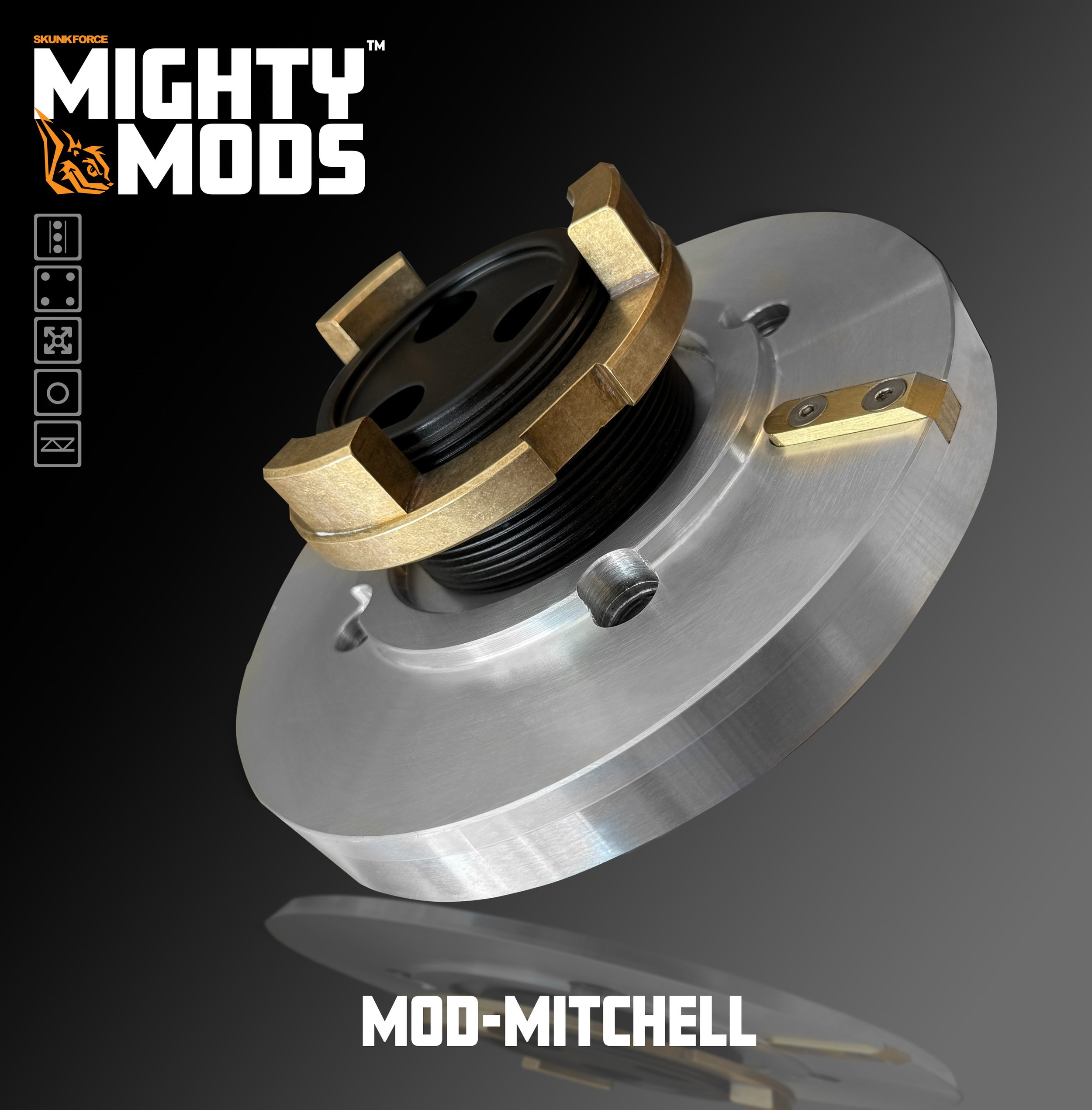

Note: This Rotator is compatible with the Mitchell to MOD adapter (four screws quickly change out the MOD side for that adapter)
