If you're building on modular truss, everything you mount eventually needs to rotate. Lights, cameras, frames, scenic pieces, ,talent, entire platforms. Often that means improvising with hardware that wasn't designed for the job, or over-engineering a custom solution every time.

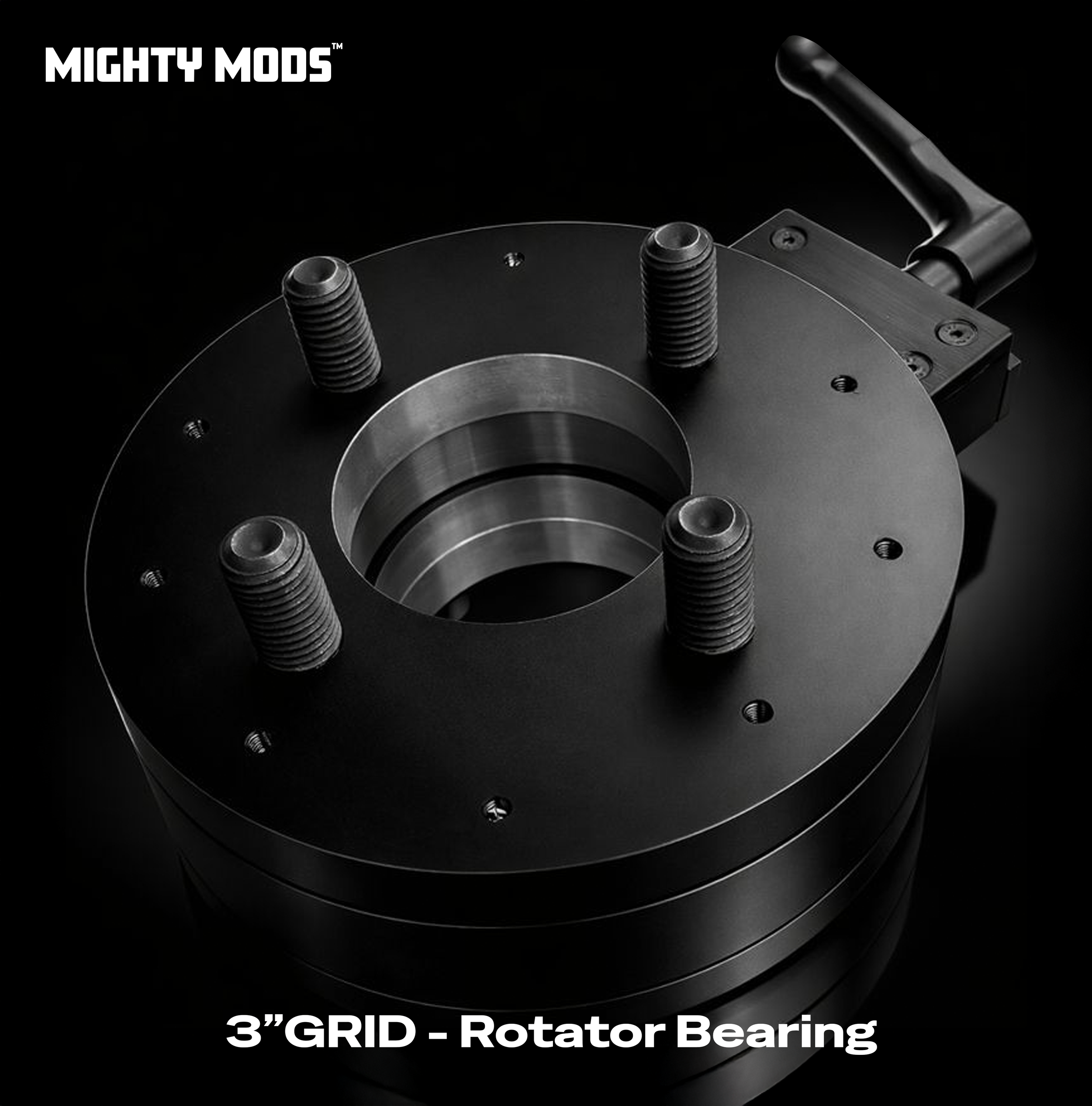

The MightyMODS Rotator Bearing gives you controlled, repeatable rotation anywhere on your truss structure. A crossed-roller bearing delivers smooth movement under heavy loads, while the integrated friction brake locks position exactly where you need it. Cable and structure pass straight through the center, so nothing gets pinched, tangled, or rerouted.
Bolts directly to 3"GRID. Compatible with ModTruss, MecaTruss, Modulus X, and any modular truss system using the 3"GRID hole pattern. Embedded 5/8"-11 threaded studs for secure integration. Optional Mitchell mount available.
Built for loads you won't second-guess. 6,700 lbs static axial capacity. 4,500 lbs dynamic. This isn't a lightweight turntable, it's rated for the kind of loads where failure isn't an option.
Lock it, leave it. The integrated friction brake holds position under load without drift. Set your angle, lock the brake, move on. No babysitting, no creep, no surprises mid-show or mid-take.
Pass through keeps it clean. Run cable, power, or signal straight through the center. No external cable management, no routing around the bearing, no snag points when you rotate.
Precision machined from 6061 aluminum with an anodized black finish. Built for long-term professional use across stages, sets, installations, and industrial environments.
Film and broadcast: Mount lights or camera platforms on truss and dial in the exact angle. The brake holds through the take. Reposition in seconds for the next setup.
Live events and staging: Rotate fixtures, scenic elements, or entire rigging assemblies. The load rating means you're not guessing whether it can handle what you're hanging.
Installations and industrial: Repeatable positioning for permanent or semi-permanent rigs. The crossed-roller bearing won't degrade over thousands of cycles.
Axial Load (Tension / Compression) Static 30 kN / 6,700 lbf Dynamic 20 kN / 4,500 lbf Shock 15 kN / 3,400 lbf
Radial Load (Shear) Static 15 kN / 3,400 lbf Dynamic 10 kN / 2,250 lbf Shock 5 kN / 1,100 lbf
Moment Load (Overturning) Static 1,000 N·m / 740 ft·lbf Dynamic 650 N·m / 480 ft·lbf Shock 330 N·m / 240 ft·lbf
Load limits based on engineering calculations and standard safety factors. Proper installation and load distribution required.
Compatibility: ModTruss, MecaTruss, Modulus X, any 3"GRID system
Mounting: Embedded 5/8"-11 threaded studs
Material: 6061 Aluminium, anodized black
Bearing: Crossed-roller
Brake: Integrated friction brake
Pass through: Cable, power, signal, structural
Optional: Mitchell mount, waterproof SKB case, DMX motor
Questions? contact us
This product is compatible with ModTruss®, Modulus X™, and MeccaTruss™ modular truss systems. Perfect for film, events, and industrial applications as part of a complete set of modtruss accessories and modulus x accessories. Works with all 3"GRID compatible truss system accessories.
