KIT - Redback Basic

KIT - Redback Basic

6,290.00

DOWNLOAD DATA SHEET PDF

Kit Includes;

1 x 36" Spider utilizing 3456 litegear powered bi-color LED's

1 x Ultrabounce fitted cover

1 x Magic Cloth diffuser

1 x Full grid diffuser

1 x 1/2 grid diffuser

1 x LiteDimmer including power supply

1 x IEC cord set appropriate to your country

1 x 24' Head feeder

3/8 male baby pin

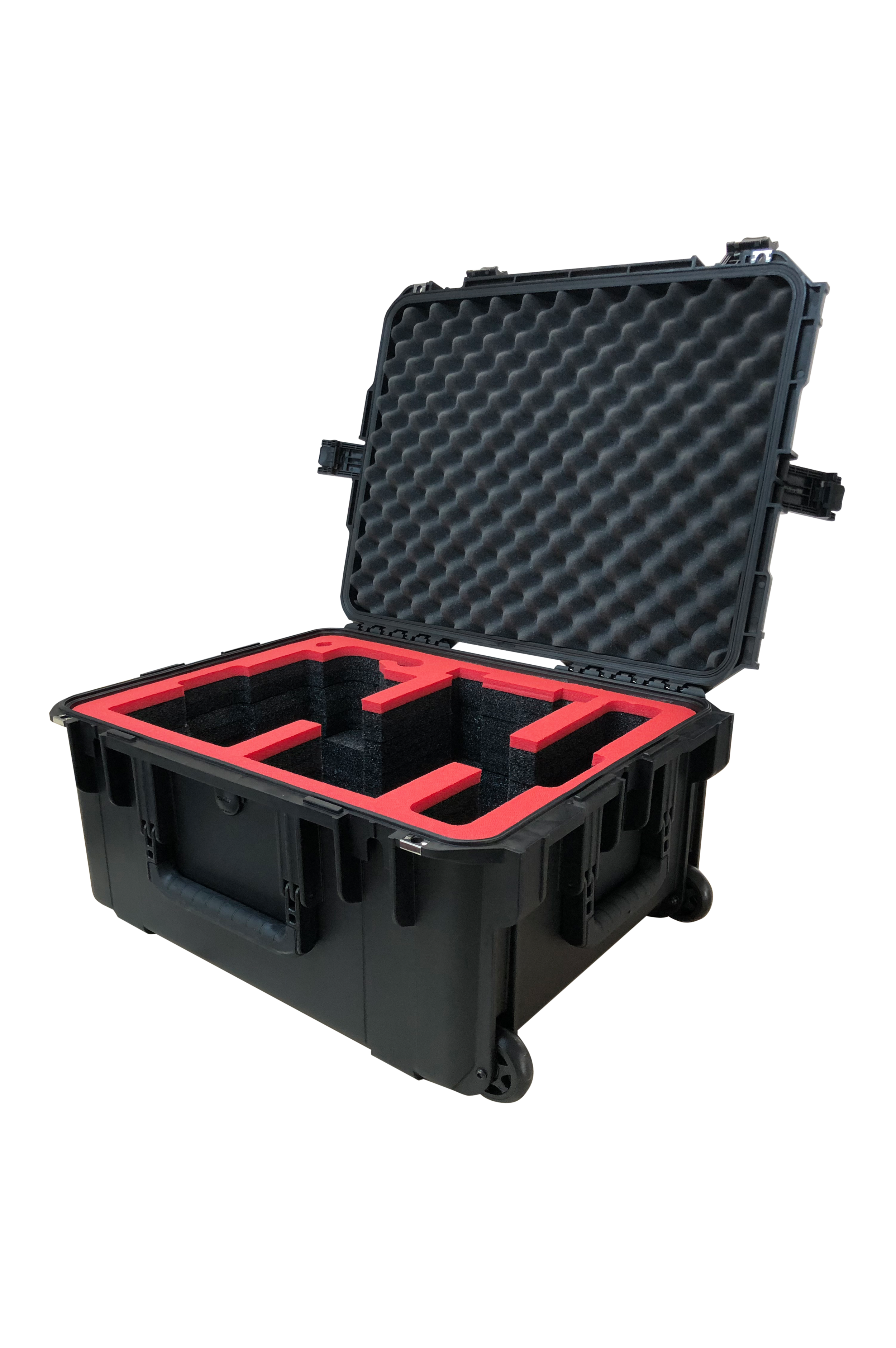

1 x Injection Molded Waterproof case including a form-cut foam interior.


The Redback 36" Octagon Parabolic LED Basic Kit is built around a 36" diameter fixture that can be set up in 5 minutes, broken down to a 12 x 8" cylinder, and packed in its shock and waterproof rolling travel case.

The fixture's eight hinged aluminum and steel arms can be formed into a parabolic shape with a total of 3456 closely-spaced LEDs that combine to create a soft continuous source.

Using the included 90-305 VAC Litegear power supply/dimmer, the Redback has color temperature with a wide range of 2600 to 6500K with a CRI of 95+ - an indicator of superior accuracy in color rendering. It can also be dimmed from 0 to 100% and while you can make these adjustments locally on the fixture, you can also do it remotely via onboard DMX from a console.

For those requiring directional control and softness options this kit also includes a Redback Parabolic Reflector that includes an Ultrabounce fitted cover, Magic Cloth diffuser, and full and 1/2 grid cloth diffusers.

Design The key to recreating the umbrella bounced light look with LEDs is to have them positioned closely together, spread evenly along the length of a parabolic-shaped armature, and focused outwards, not bounced, combining to create one attractive, continuous soft source. This phenomenon makes direct LED a viable alternative to bounced HMI or Tungsten.

Power At 24 fps, ISO 800, the Redback reads f/22 at 3', f/11 at 6', and f/8.4 at 9'.

Super Bright The unit requires no diffusion and can therefore pack a real punch. The output of the Redback's 3456 LEDs running 24V at 400W is comparable to an umbrella-bounced fixture of similar size with a 2500W HMI bulb.

Easy Rigging The unit weighs in at 7 lb, 4 oz, making it very easy to rig from the included 5/8" Baby pin either mounted at the front or rear 3/8" thread mounting points, typically with a standard grip head found on any C-stand.

Strong and Compact The Redback is built robustly with the strongest materials. It is quick to collapse down to a 12 x 8" cylinder - a fraction of its open size, and packs into a rolling travel case that is water and shockproof.

Optional Accessories The Redback has a steadily growing list of Hudson Spider and 3rd party accessories, which includes diffusion, teasers, soft egg crates, and soft boxes, including a 6 x 1' Octa, called Stealth, weighing in at 12 lb.

Kit Dimensions and Weight

Dimensions: 12.5 x 21 x 24"
Weight: 49 lb


LED

Total LEDs 3,456

Lumens 15280

Exposure  24fps 1/48sec  800asa @ 100% 3’ / 91cm - f22.2   |    6’ / 182cm - f11.5   |   9’  /  273cm - f8.4

Color range 2600 K to 6500 K

Dimming range 0 – 100%

Color rating 95+ CRI


HEAD

Head size open - parabolic 37”/95.2cm ø octa  x  15.5” /39.4cm Parabola

Head size open - flat 50”/127cm ø octa  x  1”/2.5cm

Configurations Parabolic, flat and folded

Head size closed 12”/30.5cm  x   8” /20.3 CM ø octa

Head weight 7lbs 4oz  /  3.3kgs

Materials 7071+6065 Aluminum, steel and silicone plastics.


ELECTRONICS

Output voltage 24 VDC Constant voltage

Input voltage 90 – 305 V AC, 50/60hz (C14 connector) Universal

Power 400 W

Power connectors 7 PIN   Bayonet locking system   PWM (PL7 connector)   IP 68

Ballast Protection Over current/voltage/temperature or short circuit.

Ballast IP rating IP20

Ballast size 14”/35cm L  x  5”/12.7cm H   x   7”/17.8cm W

Ballast weight 11lbs 11oz / 5.3kg

Head feeder length 24’ / 7.3m

IEC cord set US

DATA

DMX connector Input/output 5 pin XLR connector

Service connector USB Type A – service center upgradeable

Data protocol DMX 512


RIGGING

Mounting point 3/8” Thread front and back

Baby pin 3/8” Thread, 5/8” ø    x    3.5”/8.9cm

Mounting method Install the baby pin to the front or back of the light and attach to a 5/8” grip or any c-stand grip head


FABRICS


Diffusions 36” / 91.4cm  ø octagon  x   3 varied fabric diffusions w/hook edging for easy install

Utility backing cover Poly and nylon fabrics stitched, reinforced and laminated, ready to accept accessories


CASE


Case type Injection molded waterproof case and a foam cut interior

Case size 12.5” x 21” x 24” / 31.75cm x 53cm x 70cm

Case weight - packed 49lbs / 22.2 kgs
